STS Manufacturer of KOMPUTERISED

Creep Testing Machines, Tensile and Universal Testing Systems

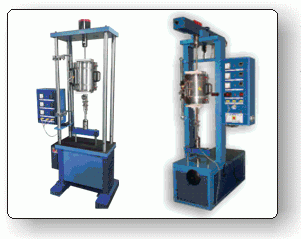

Single Lever Arm Type CREEP TESTING MACHINE
Servo Electric
CREEP TESTING MACHINE

SERIES : 9018

STS manufacturers Single Lever Arm Type Creep Testing Machines for testing in air environment in accordance with ASTM E-139 testing standards in FOUR ROD column type, Solid C channel type and Servo - Electric Creep Testing Machine (with Load Cell) with 3 or 5 zone High Temperature Furnace (upto 1250 Degree C), Grippers, Adapters, Creep Compression Test Fixtures, Special Fixtures for tube Adaptors, Dual displacement measurement systems, useful for testing long duration upto 50,000 Hours

Capacities : 1000 kgf., 2000 kgf, 5000kgf., 10000 kgf., 30000 kgf.

Series 9018

SERIES : 9018



TENSILE  &  UNIVERSAL  TESTING M/c

SERIES :9036 [ SIDEDECK Version ]

STS offers MultiStation UTM or TTM with wide range of Hydraulic or Pneumatic or Mechanical Grips, Accessories or Fixtures, Extensometers, Environmental chamber and Furnaces as per your test requirement . Products can be tested as per standards like ASTM, DIN, BS, JIS, IS etc. This Multistation Concept has been conceived designed and developed by PATIWANA GROUP

Sidedeck Ball Screw Driven UTM / TTM, you can mount Two different Capacities of Load Cells and Two Grips at a time. Machine are available in different

Capacities ranging from 50 Kgf  to 10 Tons.

Ball Screw Driven

SERIES :9036 [ SIDEDECK Version ]



TENSILE  &  UNIVERSAL  TESTING M/c

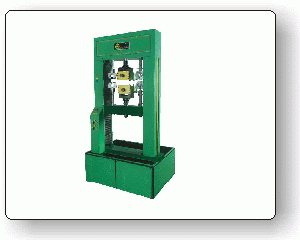

SERIES:9036 [ TRIPLEDECK Version ]

STS offers MultiStation UTM or TTM with wide range of Hydraulic or Pneumatic or Mechanical Grips, Accessories or Fixtures, Extensometers, Environmental chamber and Furnaces as per your test requirement . Products can be tested as per standards like ASTM, DIN, BS, JIS, IS etc. This Multistation Concept has been conceived designed and developed by PATIWANA GROUP

Tripledeck Ball Screw Driven UTM / TTM,you can mount Three different capacities of Load Cells and Three Grips at the time. Machine are available in different

Capacities ranging from 100 Kgf to 30 Tons.

Ball Screw Driven

SERIES:9036 [ TRIPLEDECK Version ]



UNIVERSAL TESTING MACHINE

SERIES : 9045

STS offers Servo-hydraulic  Universal Testing Systems with wide range of Hydraulic or  Pneumatic or Mechanical Grips, Accessories or Fixtures, Extensometers, Environmental chamber and Furnaces as per your test requirement . Products can be tested as per standards like ASTM, DIN, BS, JIS,  IS etc.

One can do their Dynamic Testing on Hz basis  (  Upto  50 Hz ) at given Amplitude.  We are using  MOOG  Servo - valve  in  Hydraulic  Powerpack  Unit.  We  can supply  HPS  with  Flow  Rate  of  5  lpm  to 120  lpm depending on individual test requirements.

Capacities ranging from 1000 Kgf to 60 Tons.

Closed loop type Servo-Hydraulic Driven

SERIES : 9045

UNIVERSAL TESTING MACHINE

SERIES : 9054

This to-in-one system, permits users for Dynamic (Up to 100 Hz at given amplitude)& Static Testing in Ball Screw Driven Mode of Operation, which is unique in the world. (i.e Screw Driven mode and Hydraulic mode of operating in one UTM / TTM).This concept has been conceived, designed and developed by PATIWANA GROUP.

Capacities ranging from 500 Kgf to 10 Tons.



Servo-hydraulic-cum Ball Screw Driven

SERIES : 9054
